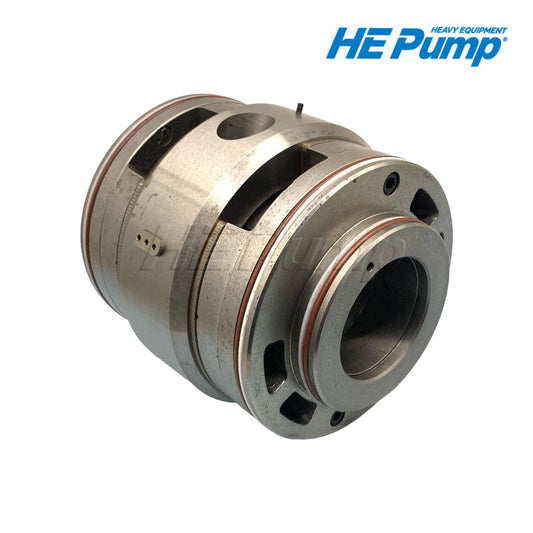

Vane Pump Cartridge - Caterpillar

Vane pump cartridge kits offer a fast, economical way to restore hydraulic system performance in Caterpillar equipment without replacing the entire pump housing. When a CAT hydraulic vane pump loses efficiency, the root cause is almost always worn internal components — rotor, vanes, cam ring, and side plates. By simply swapping the cartridge assembly containing all these wearing parts, you achieve a complete hydraulic rebuild in minutes rather than hours. At HE PUMP, we supply OEM-compatible Caterpillar vane pump cartridge kits designed for direct fitment into existing pump housings, dramatically reducing equipment downtime and maintenance costs compared to full pump replacement.

What's Inside a Vane Pump Cartridge Kit

Each vane pump cartridge kit contains all the critical internal components that wear over time:

  • Rotor: Precision-balanced with machined vane slots for smooth, vibration-free operation — the central rotating element that drives the vanes
  • Vanes: Wear-resistant sliding vanes that ride inside the rotor slots and press against the cam ring to generate hydraulic flow — the primary wearing component in any vane pump
  • Cam Ring: Profiled housing that creates the eccentric shape necessary for flow generation — precision-machined to maintain correct volumetric efficiency
  • Side Plates: Pressure-loaded plates that seal the rotor assembly and minimize internal leakage — critical for maintaining pump efficiency under high-pressure operation

Why Cartridge Replacement Beats Full Pump Replacement

When Caterpillar equipment hydraulic performance drops, many operators immediately assume the entire pump needs replacement. But in most cases, the pump housing itself is still in excellent condition — only the internal cartridge has worn. Replacing just the cartridge kit offers significant advantages:

  • Faster repair time: Cartridge swap takes 30-60 minutes versus 4-8 hours for full pump removal and installation
  • Lower parts cost: Cartridge kits cost 40-60% less than complete pump assemblies
  • Reduced downtime: Equipment returns to operation the same day instead of waiting for pump delivery
  • Simplified inventory: One cartridge kit fits multiple pump housing variations, reducing parts stocking complexity

Caterpillar Equipment Applications

CAT vane pumps and cartridge kits are used across a wide range of Caterpillar machines for auxiliary hydraulic functions, steering systems, and implement controls:

  • Excavators: 320, 325, 330, 336 series — auxiliary hydraulic circuits, swing motor charge pumps
  • Wheel Loaders: 950, 966, 980, 988 series — steering systems, implement hydraulics
  • Motor Graders: 14M, 16M series — blade control hydraulics, steering circuits
  • Articulated Trucks: 725, 730, 735, 740 series — steering and auxiliary systems

Signs Your CAT Vane Pump Cartridge Needs Replacement

Watch for these indicators that internal vane pump wear is affecting hydraulic performance:

  • Slow implement response — hydraulic cylinders move slower than normal under load
  • Reduced steering responsiveness — steering feels sluggish or requires more wheel turns
  • Increased pump noise — whining or growling from the hydraulic pump area during operation
  • Overheating hydraulic oil — system temperature rising beyond normal range due to internal leakage and reduced efficiency

Why Choose HE PUMP for CAT Vane Pump Cartridges?

Every Caterpillar vane pump cartridge kit we supply is manufactured to OEM-quality standards and inspected for dimensional accuracy before shipping. Our kits use the same rotor profiles, vane materials, and cam ring specifications as genuine CAT parts, ensuring drop-in compatibility with your existing pump housing. We offer 12-month warranty coverage on all cartridge kits, competitive pricing against dealership rates, and worldwide shipping from stock. Restore your CAT hydraulic system performance quickly and economically with a HE PUMP vane pump cartridge kit.

📧 Request a Quote for CAT Vane Pump Cartridges or browse our full Caterpillar vane pump cartridge collection for additional options.
