Piston Pump Parts- Caterpillar

Caterpillar hydraulic piston pumps are built to last, but internal wearing components eventually require replacement. Instead of replacing the entire pump assembly at significant cost, you can restore full performance by replacing only the worn internal parts. At HE PUMP, we supply OEM-compatible Caterpillar piston pump parts and rebuild kits for the complete CAT piston pump lineup. Our parts are manufactured to original dimensional specifications, allowing you to rebuild your existing pump housing and achieve like-new hydraulic performance at a fraction of the cost of a new pump.

Why Rebuild Instead of Replace?

CAT piston pump replacement is expensive — often costing $2,000-$8,000 or more depending on pump model and equipment type. Rebuilding with quality internal parts offers compelling advantages:

  • Significant cost savings: Rebuild kits cost 60-75% less than complete pump assemblies, delivering major savings on heavy equipment maintenance budgets
  • Reduced downtime: Pump rebuild can be completed in 2-4 hours with basic shop tools, versus waiting days for new pump delivery and extended installation time
  • Preserve pump housing: The main pump housing and shaft are typically in excellent condition even when internal parts are worn — no need to discard serviceable components
  • Proven reliability: A properly rebuilt CAT piston pump performs identically to a new unit when quality OEM-spec parts are used

Available Caterpillar Piston Pump Parts

We stock the complete range of internal wearing components for CAT piston pump rebuilds:

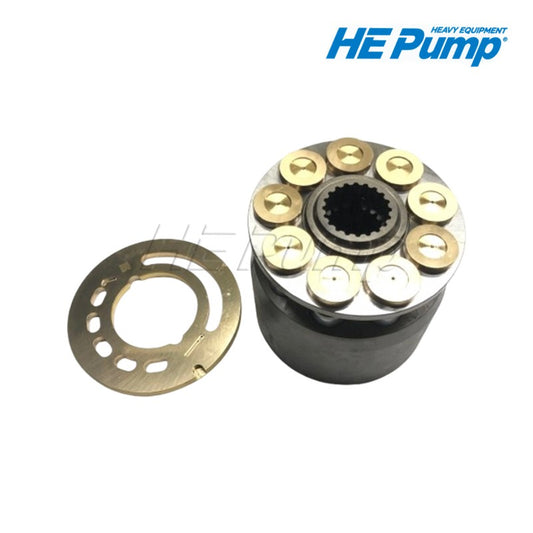

  • Valve Plates: Precision-ground valve plates with optimized port timing for optimal flow control and minimal pressure ripple — the most critical flow-control component in the pump
  • Piston Shoes: High-wear-resistance piston shoes with hardened contact surfaces for long service life under high-pressure operation — each piston shoe rides against the swash plate surface

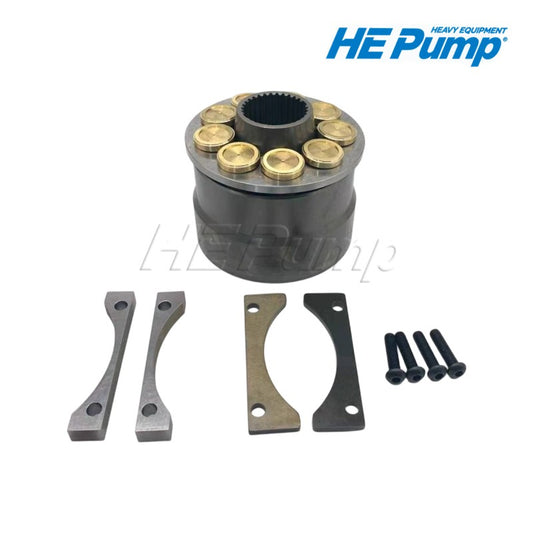

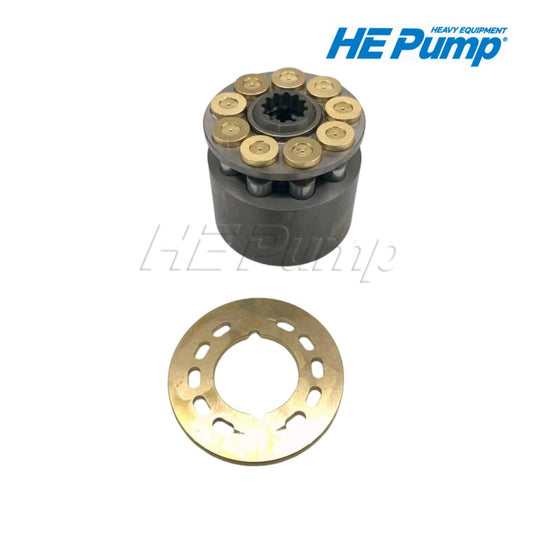

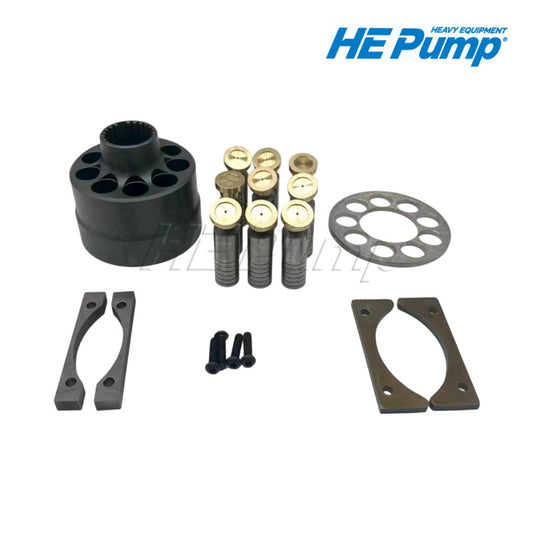

  • Cylinder Blocks: Direct replacement cylinder blocks with precision-machined piston bores and port plate sealing surfaces — the core rotating assembly of the pump
  • Swash Plates: Durably coated swash plates for consistent displacement and smooth piston actuation — controls pump displacement and flow output
  • Seal Kits & Gaskets: Complete leak-free rebuild solutions including shaft seals, O-rings, gaskets, and back-up rings for comprehensive pump resealing
  • Ball Guides & Retainers: Ball guides and retainers for smooth pump rotation and proper piston shoe alignment with the swash plate
  • Retainer Plates: Piston shoe retainer plates that maintain shoe contact with the swash plate throughout the rotation cycle

Caterpillar Equipment Applications

CAT piston pump parts are required across the full range of Caterpillar hydraulic equipment:

  • Excavators: 320, 325, 330, 336, 340, 374, 390 series — main hydraulic pumps, travel motors, swing motors
  • Wheel Loaders: 950, 966, 980, 988, 990, 992, 994 series — implement pumps, steering pumps, auxiliary hydraulics
  • Motor Graders: 12M, 14M, 16M, 24M series — implement and blade control pumps
  • Dozers: D6, D7, D8, D9, D10, D11 series — blade and ripper hydraulic pumps
  • Articulated Trucks: 725, 730, 735, 740, 745 series — dump body and steering pumps

Signs Your CAT Piston Pump Needs Rebuilding

Watch for these indicators that internal piston pump components are worn:

  • Reduced hydraulic power: Slow implement movement, inability to lift rated load — internal leakage across worn piston shoes and cylinder block
  • Increased pump noise: Rattling or knocking from pump area — piston shoes damaged or valve plate badly worn
  • Overheating hydraulic oil: System temperature rises rapidly under load — internal leakage generating heat through fluid bypass
  • Metal particles in hydraulic oil: Magnetic drain plug or filter captures metal shavings — internal component wear debris
  • Case drain flow increase: Pump case drain flow rate rises significantly — internal leakage path has enlarged beyond normal limits

Why Choose HE PUMP for CAT Piston Pump Parts?

Every Caterpillar piston pump part we supply is manufactured to OEM-quality standards and inspected for dimensional accuracy before shipping. Our parts use the same materials, heat treatments, and surface finishes as genuine CAT components, ensuring full compatibility with your existing pump housing and rotating group. We offer 12-month warranty coverage on all piston pump parts and rebuild kits, competitive pricing against dealership rates, and worldwide shipping from stock. Our technical team can help identify the correct parts for your specific pump model — provide your pump part number or equipment serial number for fast, accurate matching. Restore your CAT hydraulic pump performance today with HE PUMP piston pump parts.

📧 Request a Quote for CAT Piston Pump Parts or browse our full Caterpillar piston pump parts collection and complete CAT piston pump assemblies for additional options.
