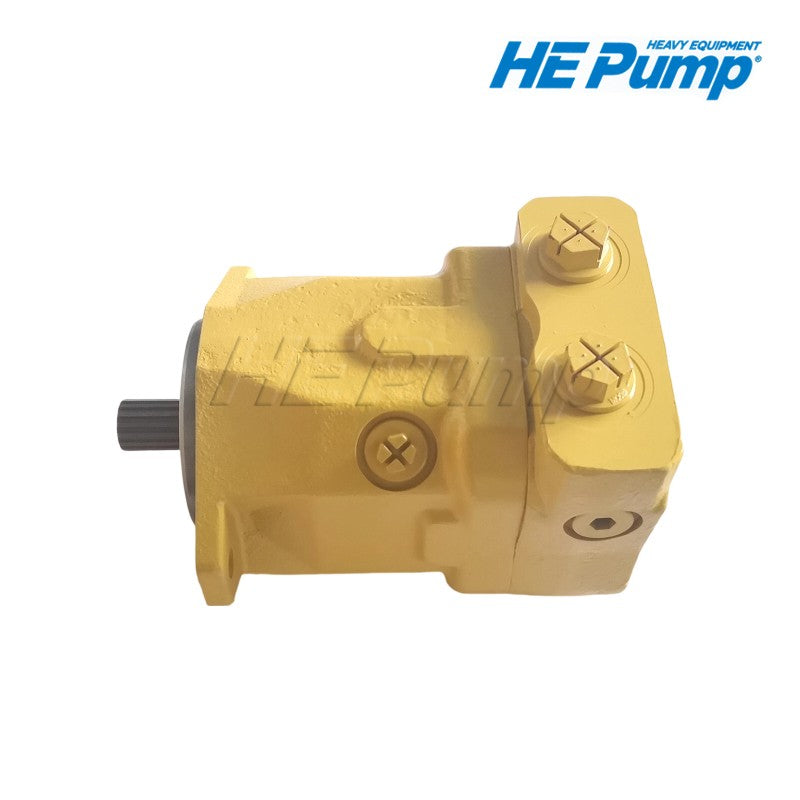

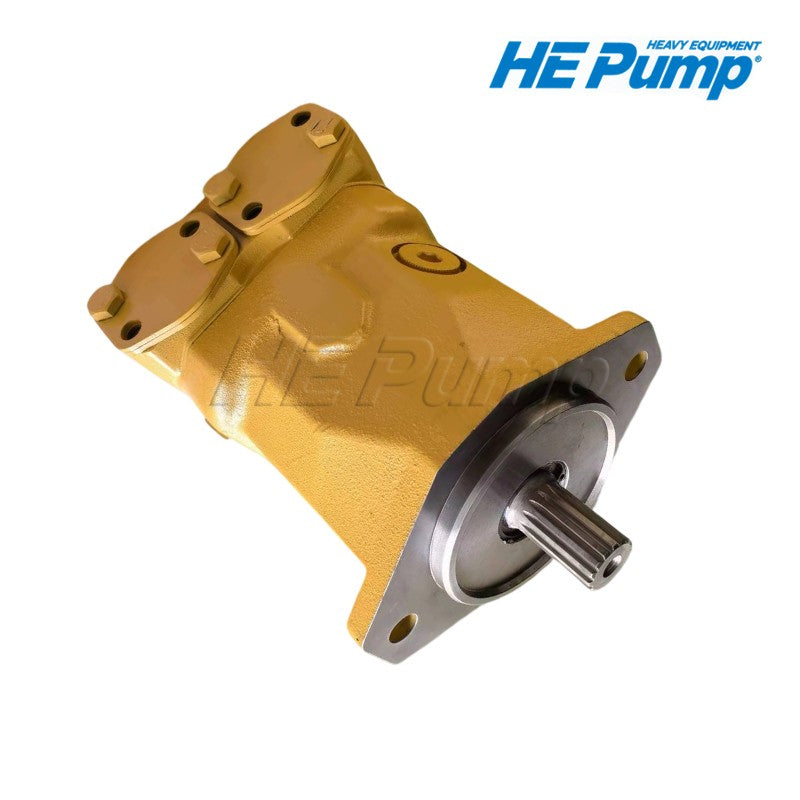

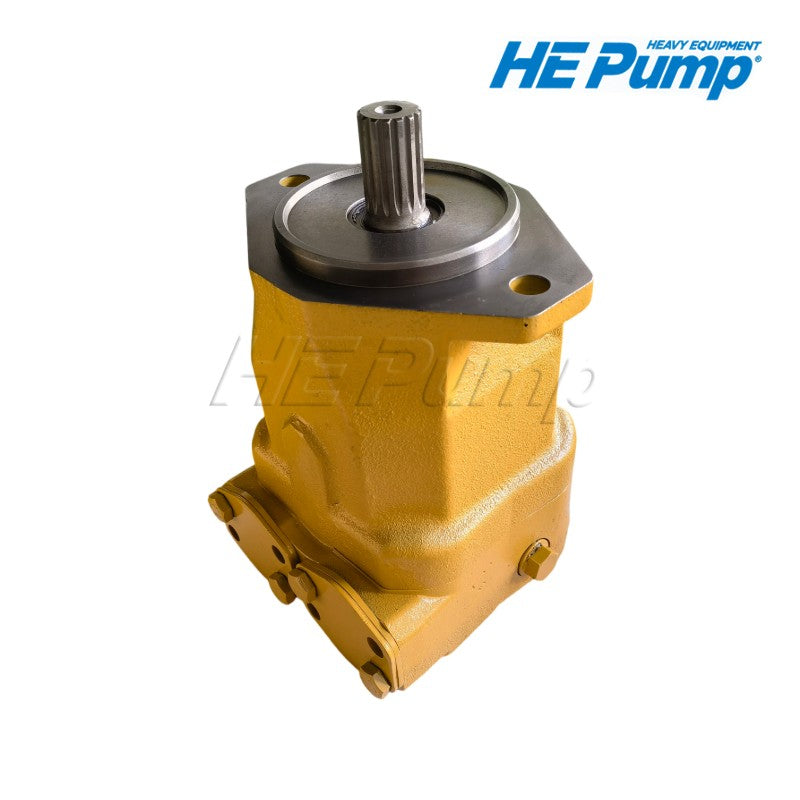

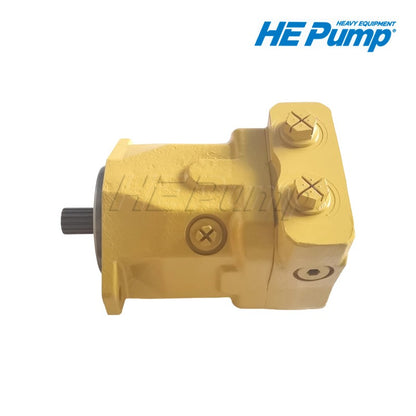

CAT 1368869 (136-8869) Piston Motor | Fits CP-533 CP-54 CP-56 CP-563 CS-531 Compactor

CAT 1368869 (136-8869) Piston Motor | Fits CP-533 CP-54 CP-56 CP-563 CS-531 Compactor

Premium hydraulic piston motor designed as a direct OEM-compatible replacement for Caterpillar CP-533, CP-54, CP-56, CP-563, and CS-531 vibratory soil compactors. Built to deliver reliable drum drive power and long service life in demanding road construction and earthwork applications.

Product Highlights

• Part Number: 1368869 / 136-8869
• Direct Fit: No modifications required
• High Performance: Meets or exceeds original Caterpillar specifications
• Durable Construction: Precision-engineered for long service life
• Wide Application: Suitable for road construction, earthwork, and site compaction projects

Technical Specifications

• Part Number: 1368869 / 136-8869
• Product Type: Hydraulic Piston Motor
• Brand Compatibility: Caterpillar (CAT)
• Application: Drum Drive System
• Warranty: 12 Months

Compatible Models

This piston motor fits the following Caterpillar compactor models:

• Caterpillar CP-533 Vibratory Soil Compactor
• Caterpillar CP-54 Vibratory Soil Compactor
• Caterpillar CP-56 Vibratory Soil Compactor
• Caterpillar CP-563 Vibratory Soil Compactor
• Caterpillar CS-531 Vibratory Soil Compactor

Applications

• Drum Drive Motor Replacement
• Vibratory System Repair
• Compactor Travel Drive System
• Road Construction and Earthwork Projects

Why Choose This Piston Motor?

• Quality Guaranteed - Manufactured to meet OEM standards
• Ready to Ship - In stock and available for immediate dispatch
• Expert Support - Technical assistance available
• Competitive Pricing - Cost-effective alternative to dealer parts

Frequently Asked Questions

Q: What are the symptoms of a failing hydraulic piston motor on CAT CP-533, CP-54, CP-56, CP-563, or CS-531 compactors?
A: Common signs include the vibratory drum failing to rotate or rotate slowly, loss of vibration force, the compactor moving sluggishly or failing to propel, hydraulic oil overheating during operation, whining or grinding noise from the motor area, and visible hydraulic fluid leakage. CAT compactors rely on the piston motor for drum drive and travel — motor failure causes immediate loss of compaction productivity.

Q: Does the 1368869 fit all five compactor models?
A: Yes, the 1368869 (136-8869) is designed as a direct OEM-compatible replacement for the CAT CP-533, CP-54, CP-56, CP-563, and CS-531 vibratory soil compactors. These models share the same motor mounting and hydraulic drive architecture. Contact us with your compactor serial number to confirm exact compatibility.

Q: What hydraulic functions does this piston motor support on a compactor?
A: As the main hydraulic piston motor, it drives the vibratory drum rotation and provides travel/propel power for the compactor. The piston motor is a critical component — failure causes loss of vibration and/or mobility, making the compactor unable to perform its primary function. In soil compaction applications, downtime directly impacts project schedules and road quality.

Q: Should I flush the hydraulic system when replacing this piston motor on a compactor?
A: Always, and with extra diligence. Compactors operate in extremely high-contamination environments (soil, dust, debris). Metal particles and environmental contaminants from the old motor can destroy the new motor within hours. Drain and replace all hydraulic oil, flush the system thoroughly with clean oil, replace all filters, and refill with fresh Cat HYDO Advanced hydraulic oil.

Q: What type of hydraulic oil is recommended for these CAT compactors?
A: Caterpillar specifies Cat HYDO Advanced 10W or 30W depending on ambient operating temperature. Compactors in soil compaction and road construction applications operate under sustained vibration and heavy load — using non-CAT approved hydraulic fluids can cause immediate motor failure and void the warranty.

Q: How do I confirm this is the correct piston motor for my compactor?
A: Check the part number on your current piston motor — if it reads 1368869 or 136-8869, this is the correct replacement. If the label is worn or missing (common in compaction environments), provide your compactor serial number and we will verify compatibility before you order.

Q: Does this piston motor come with mounting hardware or gaskets included?
A: The motor is supplied as a complete unit. Depending on your compactor configuration, you may need separate mounting bolts, gaskets, or O-rings. Contact us with your serial number and we will confirm exactly what is included and what additional parts you may need for installation.

Q: What is the warranty on this hydraulic piston motor?
A: This piston motor comes with a 12-month warranty covering manufacturing defects. The warranty does not cover damage caused by contaminated hydraulic oil, improper installation, failure to flush the hydraulic system, or using non-CAT approved hydraulic fluids.

Looking for this piston motor? Contact us today for pricing, availability, and lead time information.

Request a Quote
